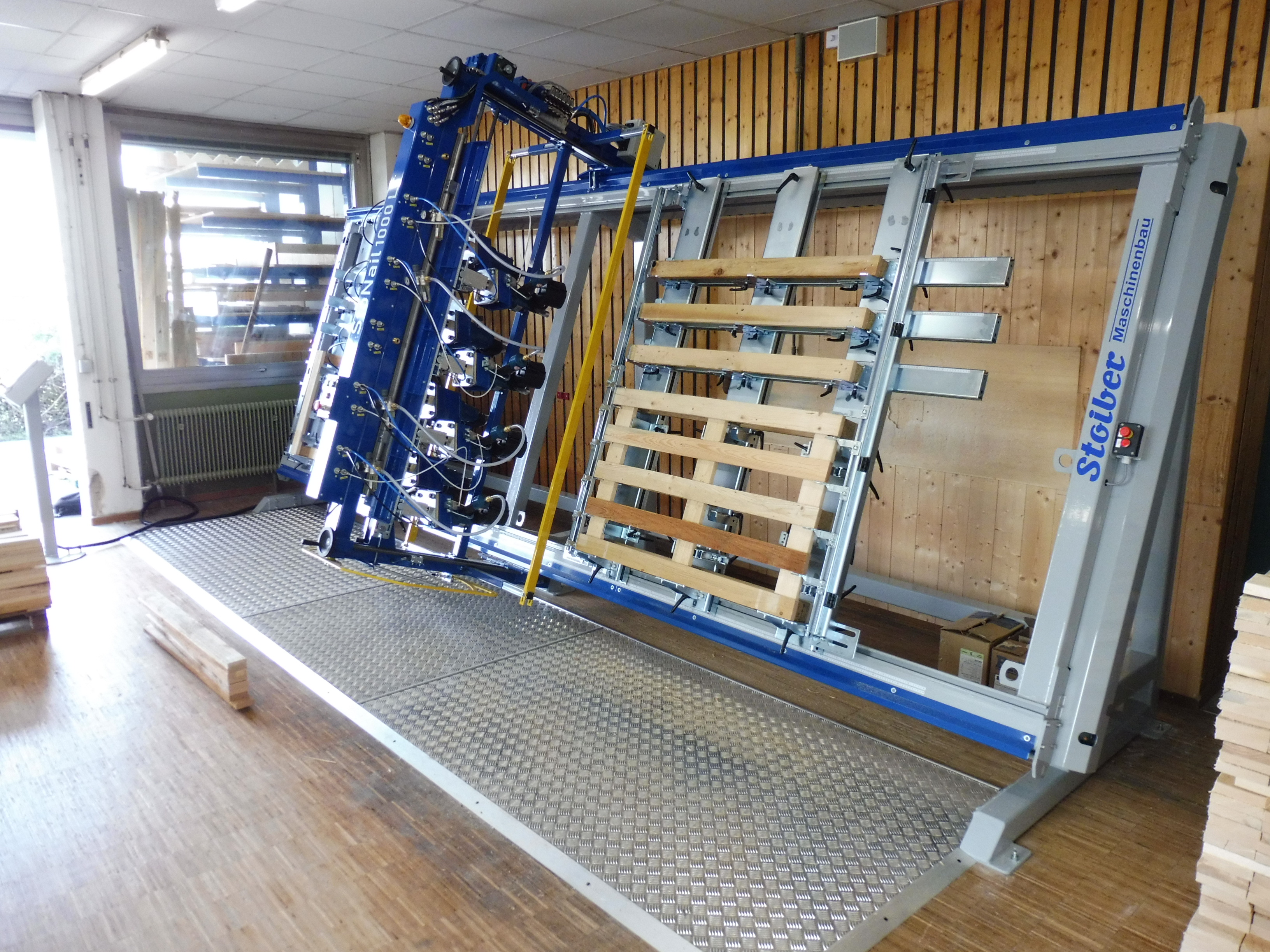

StoNail 3000 - Gantry nailing machine

This nailing machine is particularly suited to produce skids and squared timber pallets in various designs and sizes. The size of the machine can be chosen flexibly.

To produce small and large size pallets, the working area can be used both in normal and parallel mode. For the production of large pallets, the entire working area of the machine can be used. The nailing bridge is height-adjustable, so that box parts can also be manufactured.

Nail table with nailing bridge:

  • Robust frame construction with an inclination angle of 70° for ergonomic operation
  • Machine length: approx. 8500 mm
  • Working area (LxH):
    • 1 pc. pallet: max. 6000 x 1700 mm or
    • 2 pcs. pallets: max. 2500 x 1700 mm
    • Option: Extension or shortening of the machine frame by 2000 mm or to the requirements of the customer.
  • Modular pallet stop system to insert the loose woods and blocks:
    • Parallel adjustable double-C rails
    • Manually movable stops for lower woods, transverse and deck boards
    • Rivet plates can be used at all positions
    • Skids prefabrication
    • Option: Equipped with plywood boards for your own templates
  • Frequency controlled nailing bridge for positioning of the nail guns
    • Equipped with 8 nailing units incl. actuating cylinder, nail holder, trigger and nail shoes for limitation of insertion depth
    • Manual nailing unit quick adjustment depending on the pallet format
    • Collision monitoring: The retraction of the actuating cylinder is constantly monitored
    • Start button directly on the nailing bridge

Nail guns:

  • Uniform nail holder for large and small nail guns
  • Nail length max.: 90 mm (longer nails after consultation)
  • Option: Nail guns equipped with Maxi-coil magazines for up to 1000 nails


Simple, intuitive programming. Before the first program start, the machine performs an automatic teach-in run to detect nail positions.

Siemens PLC control with control panel:

  • Touch panel for operating the machine
  • Pallets programming directly on the control panel
  • Storing the created pallet programs
  • Pallet counter
  • Nail count: The machine stops when the nails have been used up
  • Internet connection for remote maintenance
  • The operating language is available in German, English, Czech and Taiwanese

Safety equipment:

  • Emergency stop actuation on the machine and on the control panel
  • Approach emergency stop on the nailing bridge
  • Spring-pull emergency stop on the nailing bridge
  • Option: Safety floor mats for personal identification
