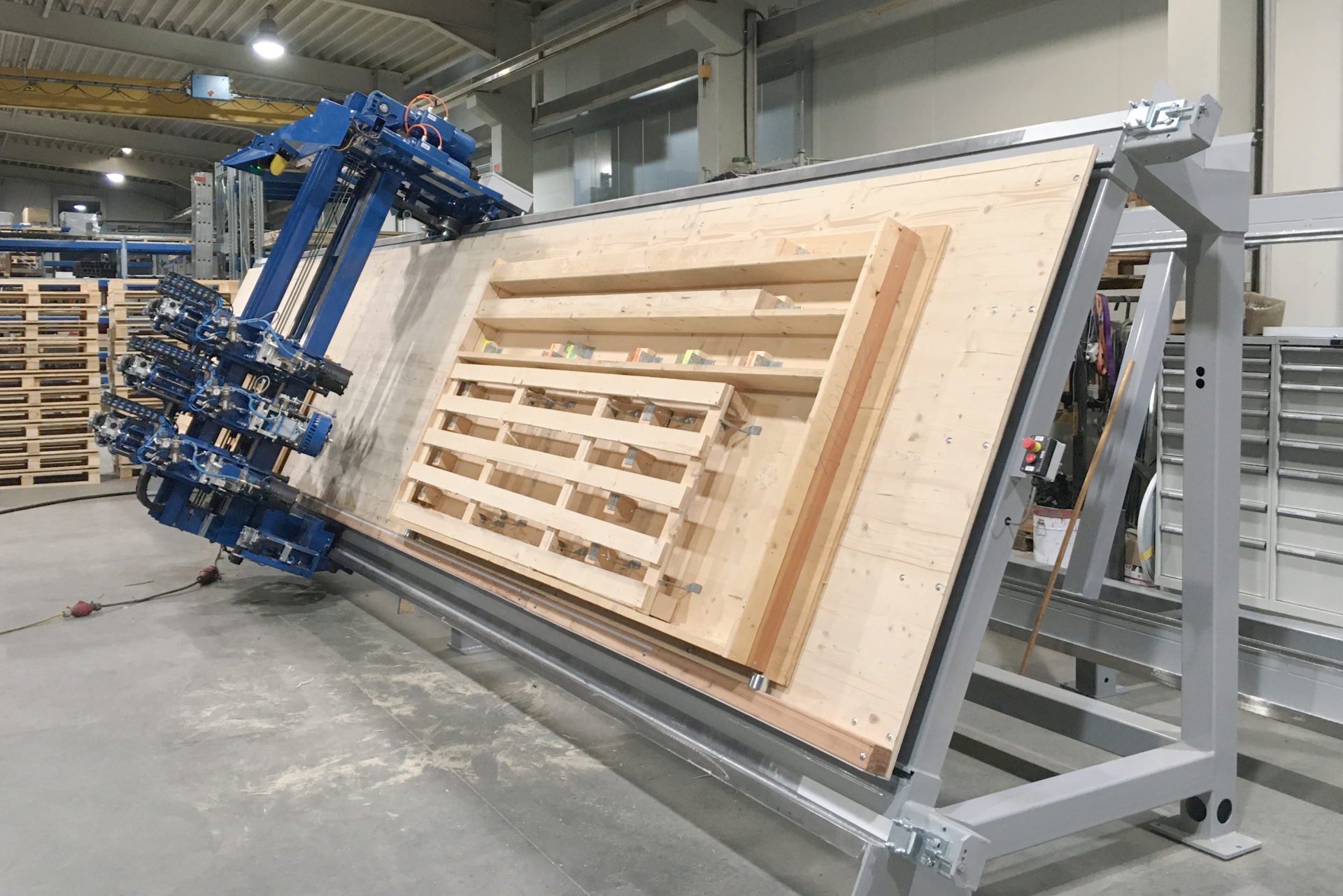

StoNail 5000 - Gantry nailing machine

This nailing machine is suitable for the production of wood products such as box parts, wall elements as well as variable pallet formats.

Up to three individually controlled nailing pairs operate independently to drive complex nail patterns into the product at any position. For the production of small elements, two stations can be used alternatively. For the production of large elements, the entire working area of the machine can be used.

Nailing bridge with nail table:

  • Robust frame construction with an inclination angle of 65° for ergonomic operation
  • Machine length: approx. 8500 mm
    • Working area (L x H): 1 pc. pallet: max. 5500 x 1700 mm or 2 pcs. pallets: max. 2000 x 1700 mm
    • Option: Extension of the machine frame by 2000 mm, by 4000 mm or to the requirements of the customer
    • Option: Extension of the machine frame by 300 mm
  • Nail table:
    • Planking of the nail table with plywood boards for own templates
    • Option: Clamping bracket when using own templates
    • Option: Modular pallet clamping system to insert the loose woods and blocks:
  • Frequency controlled nailing bridge:
    • Up to three independently controlled nailing pairs for complex nail patterns
    • Holds up to 6 nail guns
    • Coverage of the entire working area with the nail guns
    • Collision monitoring: The retraction of the actuating cylinder is constantly monitored
    • Start button directly on the nailing bridge
  • Nail guns:
    • Industry nail heads or handsets
    • Nail length max.: 130 mm
    • Nail guns equipped with Maxi-coil magazines for up to 1000 nails
    • Nailer shoes for impact depth limitation
    • Option: Staplers, drilling heads


Simple, intuitive programming on the 12-inch touch panel directly on the machine. With the parameters entered, the pallets or box parts are completely recorded or visualized.

Siemens PLC control with control panel:

  • Touch panel for the operation of the machine
  • Pallets programming directly on the control panel
  • Storing the created pallets programs
  • Pallet counter
  • Nail counter: The machine stops when the nails have been used up
  • Internet connection for remote maintenance
  • The operating language is available in German and English
  • Option: Board width measurement by decreasing board widths

Safety equipment:

  • Emergency stop actuation on the machine and on the control panel
  • Safety light curtain around the nail bar with Keyence laser scanner
