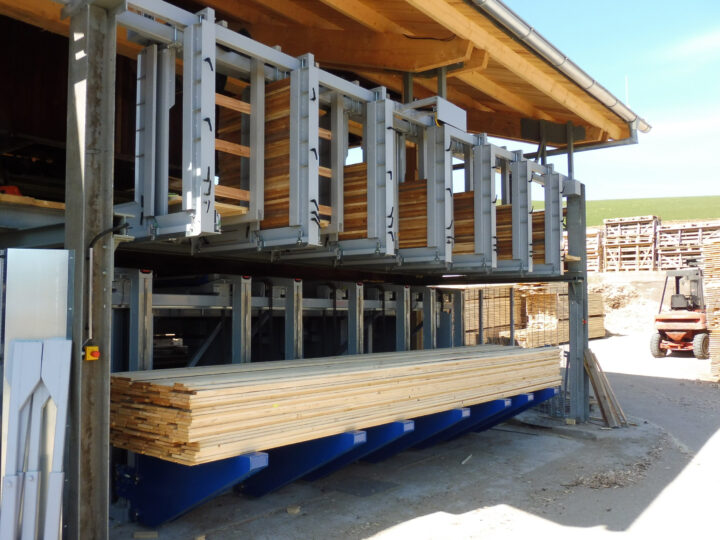

StoStack 7000 - Stationary layer stacking

Lined sawn timber is continuously taken over by the StoStack 7000 stacking machine and collected on the machine to form a layer. The completed layer is then placed on the stack while the next layer is being formed.

• Fully automatic, flush stacking
• Fast, continuous process
• Precise positioning and rapid movement sequences
• Easy operation via a touch screen
• Sturdy construction
• Board ejector for variable board widths and airspace (optimal for drying)
• No pneumatics or hydraulics, ensuring unrestricted operation even at sub-zero temperatures
• Data from the sawn timber measuring is then made available for invoicing purposes

• Crosscut saw before the machine
• Integrated, automatic strip placement
• Alignment rollers for longitudinal alignment of sawn timber

• Flexible stacking width: up to 1200 mm
• Stacking height: up to 1200 mm
• Board length: from 1500 mm
• Board/post width: 50 – 300 mm
• Board/post height: 15 – 150 mm
• Maximum board/post weight: 120 kg
• Maximum layer weight: 700 kg
• Number of cycles: up to 25 pieces per minute
